The hardware makes it even better
动态现实捕捉
设备带有两个16线的激光雷达传感器,用于捕捉3D测量数据,并结合业界信赖的SLAM软件,提供测绘级别的点云质量。安装在设备顶部的四个摄像头能够全方位地拍摄高分辨率图像,实现完整的360º捕捉,也不会被操作者阻挡视野。
实时扫描反馈
通过内置的触摸屏界面实时监控您的扫描进度,以确保您在移动时能够完全覆盖扫描区域。

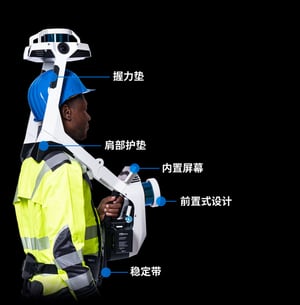

精度与人机工程学相结合
一款首创的可穿戴式设备,使操作人员能够以步行速度舒适地进行扫描。面向前方的设计让设备有针对性地扫描,加上内置的屏幕可以实现最佳的视觉效果。
- 把手垫
- 肩垫
- 内置屏幕
- 前置设计
- 稳定带
地理信息配准
NavVis VLX 2 与现场的标准工具完全兼容。它可以在全站仪和GNSS漫游器测量出的本地站点坐标系统中捕捉控制点,同时支持全国和全球坐标系统,并可以对数据集进行精确的地理信息配准和校对。
创新的折叠式设计
独特的铰链设计让设备可以折叠,并装入保护箱或背包中,让操作者能够轻松地运输和组装。
无缝运输
NavVis VLX 2 灵活的运输方法,让它在不同场地之间的移动从未如此简单。带轮的硬壳保护箱可以托运,也可以带上火车,而一个稳固、结实的背包让您可以轻松地往返于现场。
*背包目前只在欧洲发行。
通用式的扫描
在关键项目中高度灵活且快速。作为混合式扫描工作流程的一部分,NavVis VLX 2 能够可靠地处理从复杂的室内空间到施工现场的全部问题。

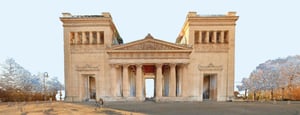

高精确度
能够有效满足甚至超越您的需求的高精确度。
卓越的数据质量
点云表面重建在去除噪点的同时保留了细节,以便更有效地用于2D绘图和3D建模。

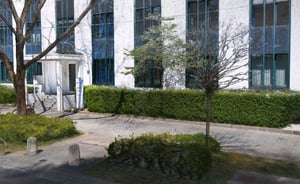

高度详细的点云拥有逼真的色彩和纹理。
在扫描过程中移动的物体会被自动检测到,并在后期处理中从点云中移除,从而减少人工工作量。

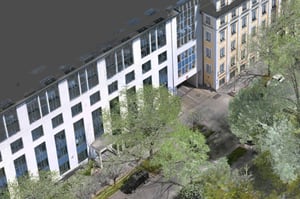

强大的 SLAM 算法可以准确地捕获整个建筑,包括外墙和周围环境。
Ready for today and tomorrow
With regular software updates to the SLAM algorithm, NavVis VLX 2nd generation is optimized for outdoor environments and will continue to evolve long into the future. It also boasts IP42 for resistance against solid objects larger than 1 mm and vertically dripping water, and a carbon-fiber frame that's super strong and reduces overall weight.
Other features common to all NavVis VLX devices (both 1st and 2nd generation):
- A more intuitive mapping experience: Edit a control point live during a mapping session. Benefit from multi-floor support which displays a live quality map that fades in and out when the operator changes floors. Use the user interface to pan and zoom captured data while you map. Plus, auto recognition of belt-hook height and improved battery status indication and safe shutdown.
- Panoramas: Now with vignetting compensation, HDR imaging for improved panorama quality, and auto white-balancing for improved coloration (especially outdoors)
- Point cloud image quality: When scanning in poor light conditions, intensity and RGB coloration will step in to compensate. Also benefit from optimized coloration, and improvements to the accuracy of NavVis VLX point clouds as high as 30%.
