NavVis VLX 3


The cornerstone of reality capture

NavVis VLX 3 is the industry-leading, wearable mobile mapping system that efficiently delivers comprehensive, highly detailed reality capture data to laser scanning professionals for complex sites, both indoor and outdoor.

VLX-3-hero

3D laser scanning with
NavVis VLX 3

The cornerstone of reality capture

NavVis VLX 3 is the industry-leading, wearable mobile mapping system that efficiently delivers comprehensive, highly detailed reality capture data to laser scanning professionals for complex sites, both indoor and outdoor.

NavVis VLX 3 features

All-in-one, highly-detailed reality capture

Comprehensively capture 3D measurements with two 32-layer lidar sensors in combination with groundbreaking SLAM software to deliver industry-leading point cloud quality for a wearable device. Four cameras positioned on top of the device take high-resolution, sharp images in every direction for a complete 360º image - all without the operator appearing in the field of view.

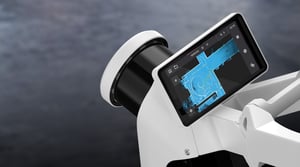

Live scanning feedback

Monitor your scanning progress in real time with a built-in touchscreen interface to ensure complete coverage as you move.

Precision meets ergonomics

A first-of-its-kind wearable device which enables operators to comfortably scan at the speed of walking. The forward-facing design allows for targeted scanning, together with a built-in screen for optimal viewing.

  • Grip pads
  • Shoulder pads
  • Built-in screen
  • Forward-facing design
  • Stabilizing belt

Geo-registration

NavVis VLX 3 takes your laser scanning and survey workflows to the next level. It’s fully compatible with standard tools in the field, and can capture control points in a local site coordinate system measured by both Total Stations and GNSS rovers. It also supports national and global coordinates for precise geo-registration and alignment of datasets.

Innovative folding design

The unique hinged design folds up and fits into a protective case or backpack, so that a single operator can easily transport and set up.

Seamless transportation

With multiple methods of transporting NavVis VLX 3, moving around and between sites has never been simpler. A protective, hard-shelled case on wheels enables air and rail travel, while a compact, sturdy backpack allows you to move to and from your site with ease.

*Backpack is currently only available in Europe.

Benefits of NavVis VLX 3

Complete coverage

With a nearly unobstructed field of view, NavVis VLX 3 delivers comprehensive coverage of both indoor and outdoor environments so you can scan more at scale.

VLX3-head-fade



Superb accuracy

For accuracy that exceeds industry standards, NavVis VLX is powered by precision SLAM technology that's entirely in a class of its own.

reality-capture-use-cases



"NavVis VLX 3 is a no brainer for us really. It became clear quite soon into the discussions that the system is in a class of its own when compared to existing mobile mapping solutions out there. The range and clarity of data is exceptional and on par with terrestrial solutions."



- Paul Henzell, Managing Director -  Three Sixty Mapping Ltd.

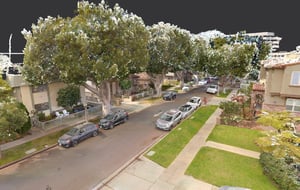

NavVis VLX 3 advanced point cloud features

VLX3-preserve-original-details
Preserve original details

Point cloud surface reconstruction preserves details while removing noise for more efficient use in 2D drawings and 3D models.

Highly realistic texturing
Highly realistic texturing

Highly detailed point clouds include color and realistic texturing. In areas where images are not allowed, high definition intensity values enable better understanding of your environment.

dynamic-object-removal
Detect and remove dynamic objects

Objects that move through the scan are automatically detected and removed from point clouds during post-processing, resulting in less manual work.

VLX3-robust-SLAM
Robust SLAM

Robust SLAM algorithms can accurately capture the entire building including the facade and surroundings.

VLX3-High-detail-at-range
High detail at range

State-of-the-art lidar sensors generate twice the amount of data at range, optimizing the level of detail that can be extracted from the point cloud improving modeling accuracy and precision.

Reduced point cloud noise
Reduced point cloud noise

NavVis VLX 3 generates sharper details and thinner point cloud slices for precise modeling and meshing results.

Up to 10 times faster than a terrestrial laser scanner

NavVis VLX 3 vs. TLS

Check out the results

tls-comparison
TLS
navvis-vlx-comparison
NavVis VLX

Ready for today and tomorrow

With regular software updates to the SLAM algorithm, NavVis VLX 2nd generation is optimized for outdoor environments and will continue to evolve long into the future. It also boasts IP42 for resistance against solid objects larger than 1 mm and vertically dripping water, and a carbon-fiber frame that's super strong and reduces overall weight.

navvis-vlx-versions_black

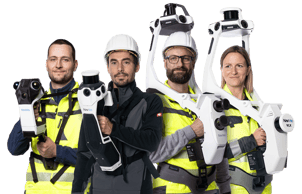

Other features common to all NavVis VLX devices (both 1st and 2nd generation):

  • A more intuitive mapping experience: Edit a control point live during a mapping session. Benefit from multi-floor support which displays a live quality map that fades in and out when the operator changes floors. Use the user interface to pan and zoom captured data while you map. Plus, auto recognition of belt-hook height and improved battery status indication and safe shutdown.
  • Panoramas: Now with vignetting compensation, HDR imaging for improved panorama quality, and auto white-balancing for improved coloration (especially outdoors)
  • Point cloud image quality: When scanning in poor light conditions, intensity and RGB coloration will step in to compensate. Also benefit from optimized coloration, and improvements to the accuracy of NavVis VLX point clouds as high as 30%.

Not sure which solution is right for you?

Talk to an expert

A complete reality capture solution



Taken together, NavVis VLX and NavVis IVION Core offer a complete reality capture solution for the built environment that makes your digital assets accessible from everywhere. Benefit from the NavVis IVION Processing and take your processing workflows to the next level.



NavVis Reality Capture Solution

NavVis-IVION-Core-press-release



Download NavVis VLX 3 resources

  • Product brochure
  • Data sheet
  • Point cloud data (e.57)
NavVis-LSP_background (1)

Have any questions about NavVis VLX 3?
