Interact with 3D building scans in a new way
See what NavVis can do for your business
NavVis has the most accurate indoor mobile mapping systems on the market, thanks to industry leading SLAM technology. If you are not already convinced by the speed and scalability of mobile devices, get ready to change your mind when you see what NavVis M6 and NavVis VLX can do.
Laser scanning pros:
Reality capture technology lets you seamlessly capture the data you need for floorplans, 3D models and digital twins. In a single scan, NavVis mobile mapping systems deliver high-quality data for every type of building documentation. See it for yourself by clicking the boxes below.
NavVis system software features state-of-the-art SLAM algorithms that have been specifically developed to overcome the challenges of capturing high-quality point clouds with a mobile system. See what the most sophisticated system software in the industry can do for point cloud quality by clicking the boxes below.

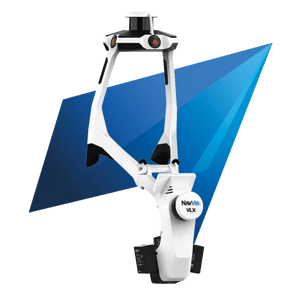

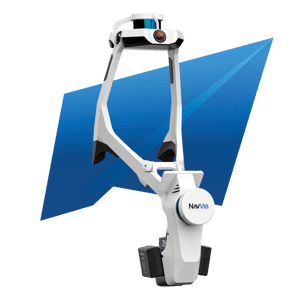

A first-of-its-kind, wearable mapping device that brings high-quality reality capture to the AEC industry in a versatile, compact design.
I was really impressed by the high quality point clouds NavVis VLX captures. The accuracy, speed and versatility of this scanning system means that we can apply mobile scanning to even more applications such as construction sites and towers, where we need to efficiently capture as-built data for BIM modeling."
A fast, fully scalable mobile mapping system on wheels that captures at the speed of walking through commercial and industrial environments where every second of downtime counts.
NavVis M6 made it possible for us to apply 3D scanning to manufacturing facilities where both minimal disruption and high-quality data are essential.
| NAVVIS VLX | NAVVIS M6 | |
| BEST FOR: | - Mid-size construction and refurbishment projects - Complex environments with staircases and obstacles - Narrow spaces such as technical rooms |
- Large commercial properties - Industrial facilities - Digital twins for manufacturing facilities |
| IDEAL PROJECT SIZE: | less than 5000 sqm | more than 5000 sqm |
| TYPE OF DEVICE: | Wearable | Push cart |
| SCANNERS: | 2 LiDAR sensors | 4 LiDAR sensors |
| CAMERAS: | 4 | 6 |
| CONTROL POINTS: | Wall and ground control points | Ground control points |
| TRANSPORT: | One case | Three cases |
| INTERFACE: | 5.5" touchscreen | 10.1" touchscreen |
| WORKING TIME: | 1.5 hours per battery set | 3.5 hours per battery set |
| BATTERIES: | Two batteries that can be hot swapped | Four batteries that can be hot swapped |
|
|
A reality capture platform for laser scanning professionals and engineers. Manage your point clouds with intuitive tools for creation, collaboration, and publication. NavVis IVION Core makes mobile mapping workflows more efficient, speeds up model creation and delivery, and adds value to your data.
Use NavVis mobile mapping systems to optimize existing scanning workflows with a faster, more efficient way to capture high-quality point clouds for BIM and CAD applications. Or extend existing workflows by using the point clouds and 360° images with NavVis IVION 3D visualization software to deliver realistic, fully immersive digital twins.
Data
Acquisition
NavVis M6
NavVis VLX
Post
Processing
NavVis System Software Suite
Point Cloud
Editing
Set up Instance
NavVis Cloud
CAD & BIM Modeling
Upload Point Cloud
NavVis IVION
CAD Drawings & BIM Models
Digital Twin
NavVis IVION
Please note: the links provided herein lead to websites of 3rd parties. These 3rd parties are not part of NavVis Group. NavVis has checked the content provided by the linked websites on May 20,2020. However, NavVis shall not be responsible nor liable for contents provided in the linked websites or solutions of 3rd parties.
Deliver first CAD-ready layouts, sections, measurements and vector lines from imported NavVis point clouds in less than 15 minutes. PointCab software is effortless to learn and easy to use.
Automatically model as-built pipes, structural elements, ducts, walls and conduits from NavVis point clouds. ClearEdge3D offers a platform to accurately automate tedious scan-to-BIM workflows.
Optimize BIM workflows by synchronizing Autodesk Revit and Bentley MicroStation BIM models with realistic 3D visualizations and point clouds in NavVis IVION.
Simplify as-built BIM workflows by connecting Autodesk Revit BIM models to realistic 3D visualizations in NavVis IVION for virtual verification.
