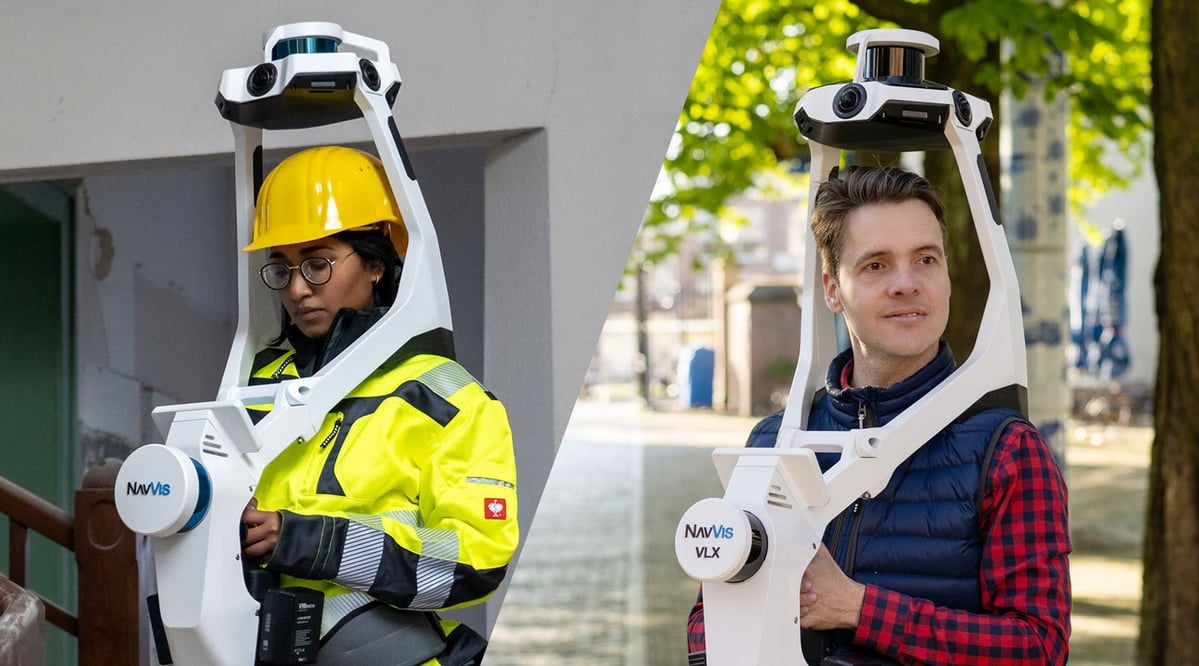

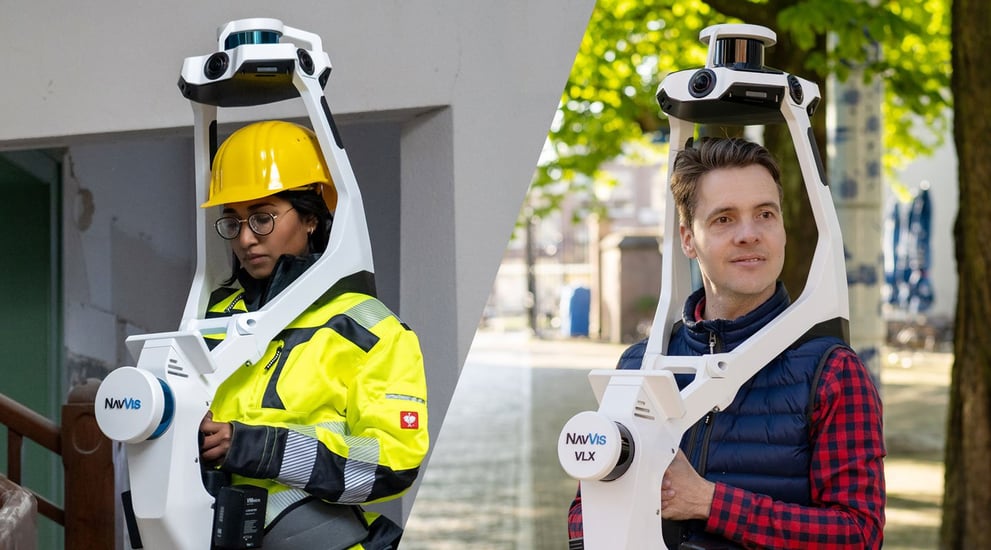

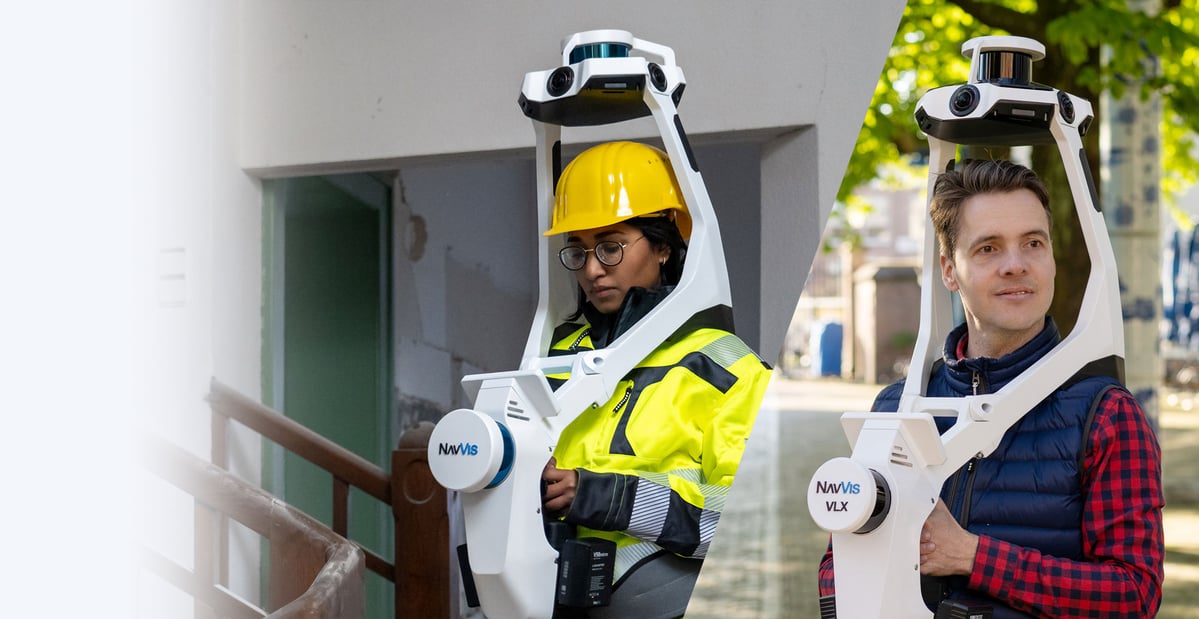

NavVis VLX 2nd generation

Ready for anything

NavVis VLX is a mobile mapping system designed for laser scanning and AEC professionals that enables high-quality reality capture of complex buildings and construction sites.

Book a demo

ACCURATE

VERSATILE

ROBUST

Software❘

Hardware❘

Point clouds❘

NavVis VLX vs. TLS❘

1st gen meets 2nd gen❘

Resources

Got any questions about NavVis VLX 2nd generation?

Get in touch
dynamic-scanning
dynamic-scanning2
dynamic-scanning3


The software makes the difference.

Dynamic scanning

Versatility when you need it most. Up to 10 times faster than a terrestrial laser scanner, NavVis VLX 2nd generation can tackle anything from complex indoor spaces with challenging light conditions to outdoor environments and construction sites.

navvis-vlx-POV

Superb accuracy

For accuracy that exceeds industry standards, NavVis VLX is powered by precision SLAM technology that's entirely in a class of its own.

Download the white paper


The hardware makes it even better

All-in-one reality capture

Capture 3D measurements with two multi-layer LiDAR sensors in combination with industry-leading SLAM software to deliver survey-grade point cloud quality. Four cameras positioned on top of the device take high resolution images in every direction for complete 360º capture — all without the operator appearing in the field of view.

VLX-2nd-generation-head

Live mapping feedback

Monitor your scanning progress in real time with a built-in touchscreen interface, to ensure complete coverage as you move.

VLX-2nd-generation-display

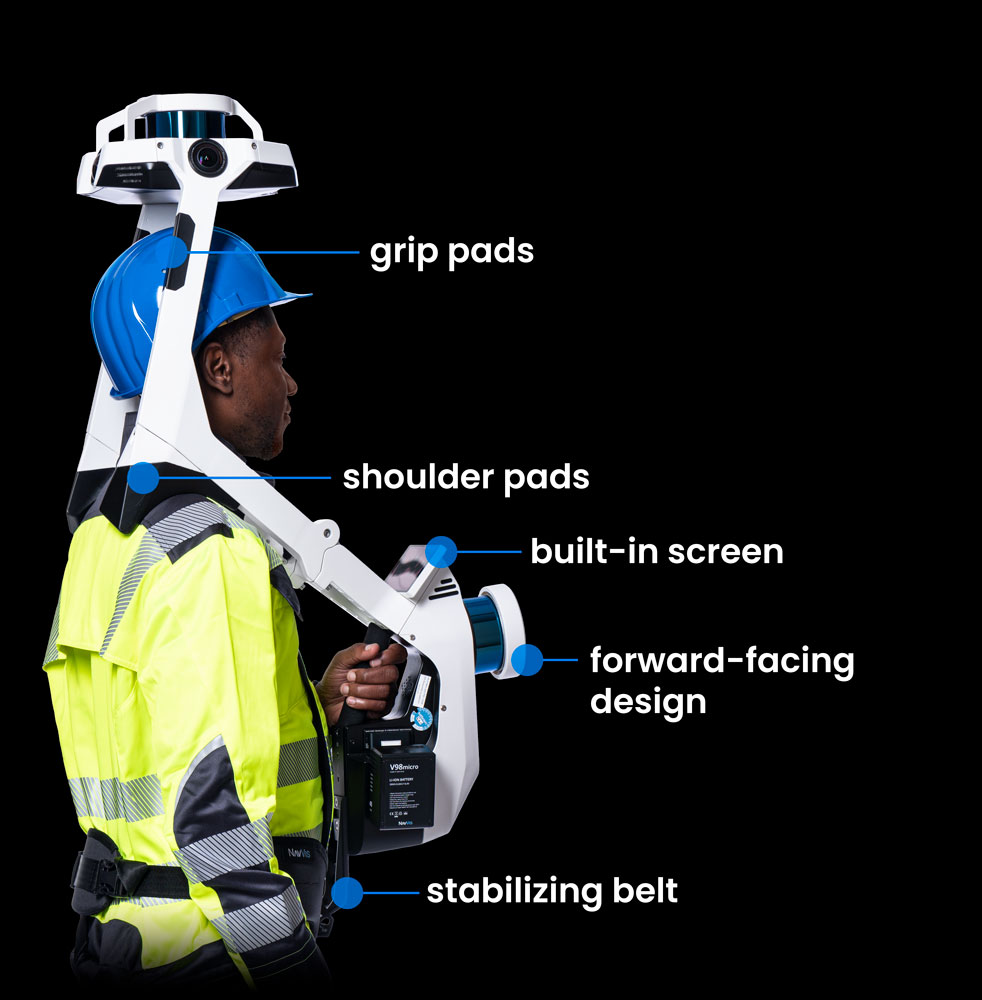

Precision meets ergonomics

A first-of-its-kind wearable device which enables operators to comfortably scan at the speed of walking. The forward-facing design allows for targeted scanning, together with a built-in screen for optimal viewing.

  • Grip pads
  • Shoulder pads
  • Built-in screen
  • Forward-facing design
  • Stabilizing belt
VLX-2nd-generation-ergonomics

Geo-registration

NavVis VLX is fully compatible with standard tools in the field. It can capture control points in a local site coordinate system measured by Total Stations and GNSS rovers, and also supports national and global coordinates for precise geo-registration and alignment of datasets.

VLX-2nd-generation-geo-registration

Folding design

The unique hinged design folds up and fits into a protective case, so that a single operator can easily transport and set up.

VLX-2nd-generation-folded


Survey-grade point clouds

NavVis system software features unique SLAM algorithms that have been specifically developed to overcome the challenges of capturing high-quality point clouds with a mobile system.

icon-dynamic-object-removal

Preserve original details


Point cloud surface reconstruction preserves details while removing noise for more efficient use in 2D drawings and 3D models.

icon-realistic-texturing

Highly realistic texturing


Highly detailed point clouds include color and realistic texturing.

icon-surface-reconstruction

Detect and remove dynamic objects

Objects that move through the scan are automatically detected and removed from point clouds during post-processing, resulting in less manual work.

icon-slam

Robust SLAM

Robust SLAM algorithms can accurately capture the entire building including the facade and surroundings.


Up to 10 times faster than a terrestrial laser scanner

NavVis VLX vs. TLS

Check out the results

Watch the full video
Download the sample data



Ready for today and tomorrow

With regular software updates to the SLAM algorithm, NavVis VLX 2nd generation is optimized for outdoor environments and will continue to evolve long into the future. It also boasts IP42 for resistance against solid objects larger than 1 mm and vertically dripping water, and a carbon-fiber frame that's super strong and reduces overall weight.

Other features common to all NavVis VLX devices (both 1st and 2nd generation):

  • A more intuitive mapping experience: Edit a control point live during a mapping session. Benefit from multi-floor support which displays a live quality map that fades in and out when the operator changes floors. Use the user interface to pan and zoom captured data while you map. Plus, auto recognition of belt-hook height and improved battery status indication and safe shutdown.
  • Panoramas: Now with vignetting compensation, HDR imaging for improved panorama quality, and auto white-balancing for improved coloration (especially outdoors)
  • Point cloud image quality: When scanning in poor light conditions, intensity and RGB coloration will step in to compensate. Also benefit from optimized coloration, and improvements to the accuracy of NavVis VLX point clouds as high as 30%.
navvis-vlx-versions

A complete reality capture solution

Taken together, NavVis VLX and NavVis IVION Core offer a complete reality capture solution for the built environment that  makes your digital buildings accessible from everywhere. Benefit from the NavVis IVION Cloud Processing Add-on and take your processing workflows to the next level.

NavVis Reality Capture Solution



NavVis VLX resources

Thumbnails-1200x675px-Brochure-NavVis-VLX-2nd
NavVis VLX product brochure

Download
Thumbnails-1200x675px-Accuracy-WhitePaper-VLX-2nd-gen
NavVis VLX indoor/ outdoor accuracy white paper

Download
Thumbnail-Guide-CAD-BIM
BIM modeling guide

Download
Thumbnails-1200x675px-DataSheet-VLX-2nd
NavVis VLX data sheet

Download
